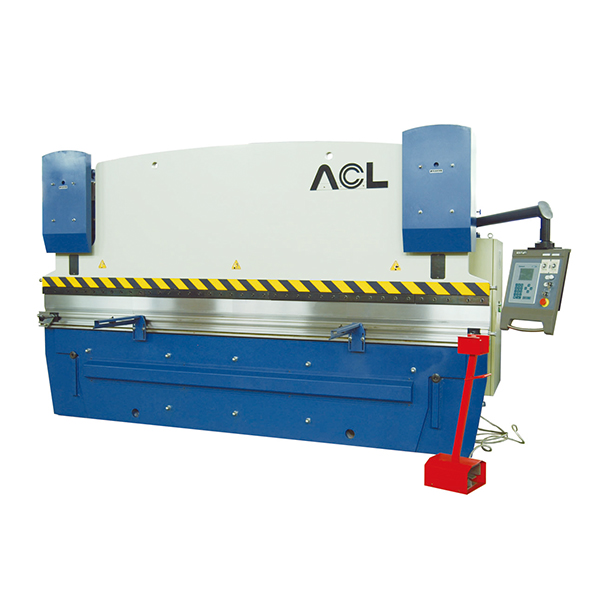

WA67K TORSION SYNCHRONIZATION PRESS BRAKE

    Model: WA67K

Basic Information

Product Detail information

  • wa67k-torsion-synchronization-bress-brake-03
  • Standard Configuration

    Two axes control (Y-X)
    Mechanical torsion synchronization
    DELEM DA41,CYBELEC DNC60 system
    Imported or Chinese famous brand hydraulic system
    Key electric parts from Europe
    High efficiency AC servo motor and driver from Japan
    Ball screw and linear guide
    Oil seals from outside
    Upper titled crowning compensation mechanism (special-purpose)
    Hydraulic working table cylinder crowning for 100T-320T
    Standard upper and lower dies
    Standard front support sheet frame

Product details

MODEL

BENDING POWER

(KN)

MAX WORKING LENGTH

(MM)

DISTANCE BETWEEN UPRIGHTS

(MM)

OPEN HEIGHT

(MM)

STROKE

(MM)

MAIN POWER

(KW)

OIL CAPACITY

(L)

SPEED (MM/S)

DIMENSIONS

(MM)

WEIGHT(KG)

APPROACH

WORKING

RETURN

WA67K-40X1500

40

1500

1250

365

125

4

160

60

9.5

60

1600X1280X2080

3100

WA67K-50X2200

50

2200

1700

365

125

4

210

60

9.5

60

2300X1290X2080

3520

WA67K-50X2500

50

2500

2000

365

125

4

210

60

8.5

60

2600X1320X2230

3920

WA67K-63X2500

63

2500

2000

385

125

5.5

230

100

10

60

2600X1320X2300

4430

WA67K-63X3200

63

3200

2700

385

125

5.5

230

100

10

60

3300X1320X2300

5200

WA67K-80X2500

80

2500

2000

385

125

5.5

230

100

10

60

2600X1385X2380

4690

WA67K-80X3200

80

3200

2700

385

125

5.5

280

100

10

60

3300X1385X2380

5500

WA67K-100X2500

100

2500

2000

430

160

7.5

400

100

10

100

2600X1500X2490

6320

WA67K-100X3200

100

3200

2700

430

160

7.5

480

100

10

100

3300X1500X2490

7270

WA67K-100X4100

100

4100

3300

430

160

7.5

580

100

10

100

4200X1500X2490

8470

WA67K-100X5100

100

5100

4400

430

160

7.5

580

100

10

100

5820X1680X2630

11500

WA67K-125X2500

125

2500

2000

430

160

11

400

100

11

100

2600X1635X2560

7500

WA67K-125X3200

125

3200

2700

430

160

11

480

100

11

100

3300X1635X2560

8340

WA67K-125X4100

125

4100

3300

430

160

11

580

100

11

100

4200X1635X2560

9480

WA67K-125X5100

125

5100

4400

430

160

11

580

100

11

100

5200X1720X2930

13500

WA67K-160X2500

160

2500

2000

430

160

11

400

100

10

100

2600X1720X2530

8000

WA67K-160X3200

160

3200

2700

430

160

11

480

100

10

100

3300X1720X2530

9270

WA67K-160X4100

160

4100

3300

430

160

11

580

100

10

100

4200X1720X2530

10800

WA67K-160X5100

160

5100

4400

430

160

11

580

100

10

100

5200X1820X2990

16000

WA67K-160X6100

160

6100

5400

430

160

11

650

100

10

100

6100X1820X3000

19920

WA67K-200X2500

200

2500

2000

450

200

15

400

100

9

100

2700X1780X2740

10690

WA67K-200X3200

200

3200

2700

450

200

15

480

100

9

100

3410X1780X2740

12210

WA67K-200X4100

200

4100

3300

450

200

15

580

100

9

100

4200X1780X2740

13810

WA67K-200X5100

200

5100

4600

450

200

15

650

100

9

100

5200X1800X2850

19700

WA67K-200X6100

200

6100

5400

450

200

15

750

100

9

100

6300X1800X3100

23260

WA67K-250X2500

250

2500

2000

450

200

18.5

400

100

10

100

2700X1830X2810

12500

WA67K-250X3200

250

3200

2700

450

200

18.5

480

100

10

100

3420X1830X2810

13780

WA67K-250X4100

250

4100

3300

450

200

18.5

580

100

10

100

4250X1830X2810

15610

WA67K-250X5100

250

5100

4600

450

200

18.5

650

100

10

100

5200X1900X2900

21560

WA67K-250X6100

250

6100

5400

450

200

18.5

750

100

10

100

6200X1900X3150

23880

WA67K-320X3200

320

3200

2700

520

250

22

700

80

9

80

3500X2150X3245

18100

WA67K-320X4100

320

4100

3300

520

250

22

800

80

9

80

4400X2150X3430

20050

WA67K-320X5100

320

5100

4600

520

250

22

900

80

9

80

5400X2150X3600

28160

WA67K-320X6100

320

6100

5400

520

250

22

1000

80

9

80

6400X2150X3700

33300
