ADJUSTABLE HYDRAULIC NOTCHING MACHINE

    Model: Q28YB-6X220

Basic Information

Product Detail information

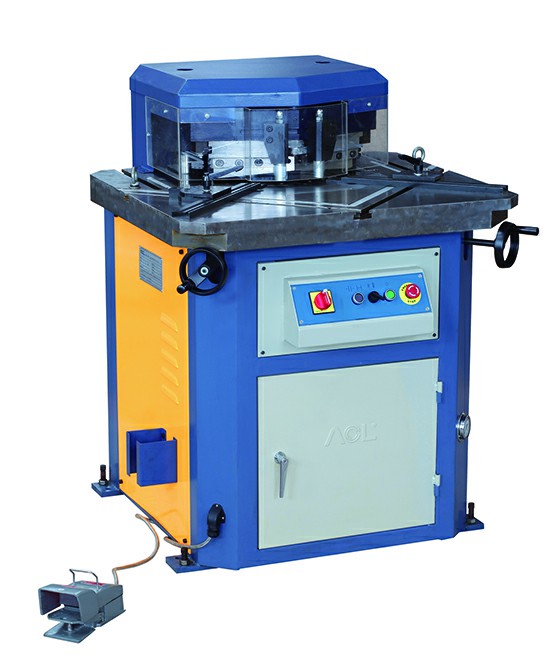

  • adjustable-hydraulic-notching-machine-02

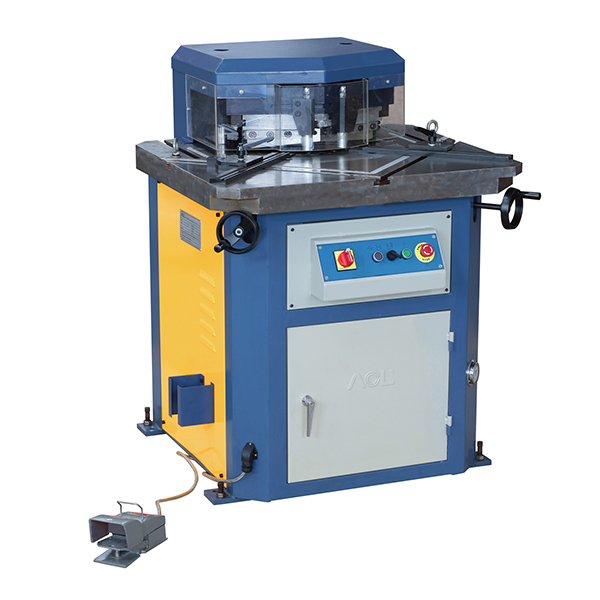

  • ADJUSTABLE HYDRAULIC NOTCHINE MACHINE

    This machine, as a high-efficiency curve shearing device for sheet metal, is widely used for mechanism manufacturing, cabinet manufacturing, vehicle, Household Appliances, light industry and etc.
    This machine is used in cutting mild steel plate (Max thickness 6mm, max angle length ≤220mm, notching angle 30°~140° and tensile strength≤450 N/mm2). The cutting thickness must be changed according to the intensity of the working piece. This machine cannot be used with the max pressure of the hydraulic system exceeding 20Pa when shearing the plate with high-intensity.
    This machine adopts welding structure, hydraulic drive with stable working, good rigidity and vibration resistance.
    This machine with fast shearing speed, small dimensions but compact structure, easy-operation, single and stepping function, and the stroke of upper die frame can be adjusted to improve shearing efficiency. The clearance auto adjuster can adjust clearance according to the plate thickness for saving time and improve the notching quality. There is a safe device which is fixed type. The components of hydraulic and electrical system are famous brand from domestic or foreign with high reliability and life span.

Product details

No

Description

Unit

Value

1

Adjustable shearing angle



30°~140°

2

Blade length

mm

220

3

Max shearing thickness (σb=450MPa)

mm

6

4

Max notching length

mm

220

5

Stroke(when max shearing length)

spm

24

6

Dimensions of work table

mm

950×850

7

Height of work table

mm

950

8

Main motor

Model



Y112M-4-B5

Power

kw

4

Speed

r/min

1440

9

fuel tank capacity

L

30

10

Max work pressure of hydraulic system

MPa

18

11

Dimension(L×W×H)

mm

950×920×1230

12

Weight

kg

1000
